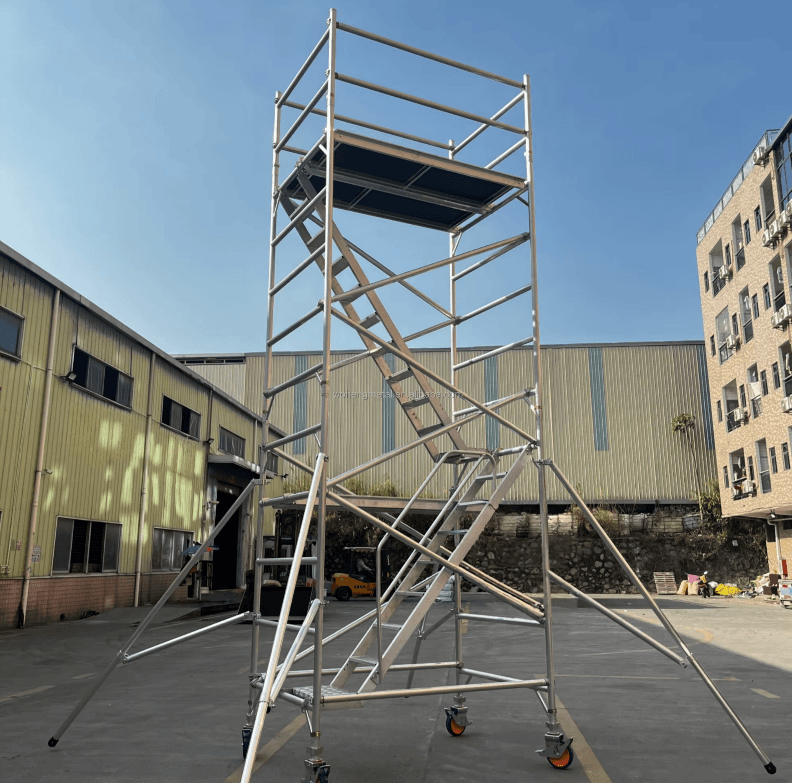

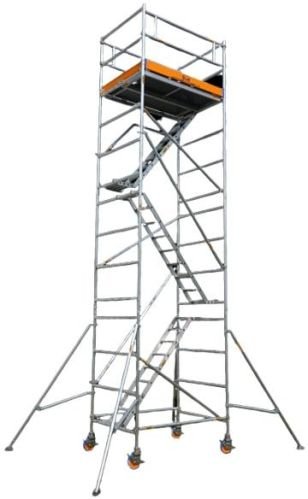

Stairway Scaffolding Tower Z-Type
Stairway scaffolding is a lightweight industrial modular access tower system with minimal additional components, providing a quicker, safer and simpler assembly. This tower system is designed for frequent ascent and descent, offering a streamlined assembly with minimal extra parts. With a 1.45mtr frame width and platform lengths of 2.5mtr, the Stairway tower caters to platform heights from 2.3m to 12.3mtr
Model-STRW Z-Type
| Tower standard | BSEN 1004-1:2020 |
| Platform length | 2.5 Mtr |
| Tower Width | 1.45 Mtr |
| Tower Length | 2.5 Mtr |
| Min Platform Height | 2.3 Mtr |
| Max Platform Height | 12.3 Mtr |
| SWL of Tower | 750 Kgs |
| SWL of Platform | 250 Kgs |
| Joint type | Full 360° welded frame joint connections |
Stairway scaffolding is a lightweight industrial modular access tower system with minimal additional components, providing a quicker, safer and simpler assembly. This tower system is designed for frequent ascent and descent, offering a streamlined assembly with minimal extra parts. With a 1.45mtr frame width and platform lengths of 2.5mtr, the Stairway tower caters to platform heights from 2.4m to 12.3m.
- Ideal for use where there is a need to frequently climb and descend
- Newly designed Guardrail folds compactly for ease of storage and transportation
- Fewer components for a quicker and simpler build
- Safety guardrail in place before operator ascends the platform
- Positive quicklock action ensures tower rigidity
- Self-closing fully hinged trapdoor for safety whilst ascending and descending to the working area
